[TryHackMe][CompTIA_Pentest+][Nmap]

- 6 mins
TryHackMe CompTIA_Pentest+ Penetration Testing Tools

Summary:

An in depth look at scanning with Nmap, a powerful network scanning tool.

Tasks

Introduction

Question : What networking constructs are used to direct traffic to the right application on a server ?

Answer : Ports

Question : How many of these are available on any network-enabled computer ?

Answer : 65535

Question : [Research] How many of these are considered “well-known”? (These are the “standard” numbers mentioned in the task)

Answer : 1024

Nmap Switches

Question : What is the first switch listed in the help menu for a ‘Syn Scan’ (more on this later!) ?

Answer : -sS

Question : Which switch would you use for a “UDP scan” ?

Answer : -sU

Question : If you wanted to detect which operating system the target is running on, which switch would you use ?

Answer : -O

Question : Nmap provides a switch to detect the version of the services running on the target. What is this switch ?

Answer : -sV

Question : The default output provided by nmap often does not provide enough information for a pentester. How would you increase the verbosity ?

Answer : -v

Question : Verbosity level one is good, but verbosity level two is better! How would you set the verbosity level to two ?

Answer : -vv

Question : What switch would you use to save the nmap results in three major formats ?

Answer : -oA

Question : What switch would you use to save the nmap results in a “normal” format ?

Answer : -oN

Question : A very useful output format: how would you save results in a “grepable” format?

Answer : -oG

Question : How would you activate this setting ?

Answer : -A

Question : How would you set the timing template to level 5 ?

Answer : -T5

Question : How would you tell nmap to only scan port 80 ?

Answer : -p 80

Question : How would you tell nmap to scan ports 1000-1500 ?

Answer : -p 1000-1500

Question : How would you tell nmap to scan all ports ?

Answer : -p-

Question : How would you activate a script from the nmap scripting library (lots more on this later!)

Answer : --script

Question : How would you activate all of the scripts in the “vuln” category ?

Answer : --script=vuln

Scan Types

TCP Connect Scans

Question : Which RFC defines the appropriate behaviour for the TCP protocol ?

Answer : RFC 793

Question : If a port is closed, which flag should the server send back to indicate this ?

Answer : RST

SYN Scans

Question : There are two other names for a SYN scan, what are they ?

Answer : Half-Open, Stealth

Question : Can Nmap use a SYN scan without Sudo permissions (Y/N) ?

Answer : N

UDP Scans

Question : If a UDP port doesn’t respond to an Nmap scan, what will it be marked as ?

Answer : open|filtered

Question : When a UDP port is closed, by convention the target should send back a “port unreachable” message. Which protocol would it use to do so ?

Answer : ICMP

NULL, FIN and Xmas

Question : Which of the three shown scan types uses the URG flag ?

Answer : Xmas

Question : Why are NULL, FIN and Xmas scans generally used ?

Answer : Firewall Evasion

Question : Which common OS may respond to a NULL, FIN or Xmas scan with a RST for every port ?

Answer : Microsot Windows

ICMP Netwok Scanning

Question : How would you perform a ping sweep on the 172.16.x.x network (Netmask: 255.255.0.0) using Nmap? (CIDR notation)

Answer : nmap -sn 172.16.0.0/16

NSE Scripts

Overview

Question : What language are NSE scripts written in ?

Answer : Lua

Question : Which category of scripts would be a very bad idea to run in a production environment ?

Answer : Intrusive

Working with the NSE

Question : What optional argument can the ftp-anon.nse script take ?

Answer : maxlist

Searching for Scripts

Question : What is the filename of the script which determines the underlying OS of the SMB server ?

Answer : smb-os-discovery.nse

Question : Read through this script. What does it depend on ?

Answer : smb-brute

Firewall Evasion

Question : Which simple (and frequently relied upon) protocol is often blocked, requiring the use of the -Pn switch ?

Answer : ICMP

Question : [Research] Which Nmap switch allows you to append an arbitrary length of random data to the end of packets ?

Answer : --data-length

Practical

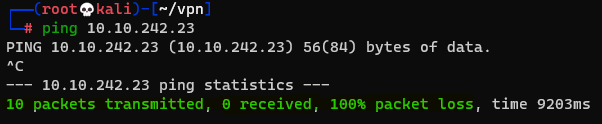

Question : Does the target (MACHINE_IP) respond to ICMP (ping) requests (Y/N) ?

Answer : N

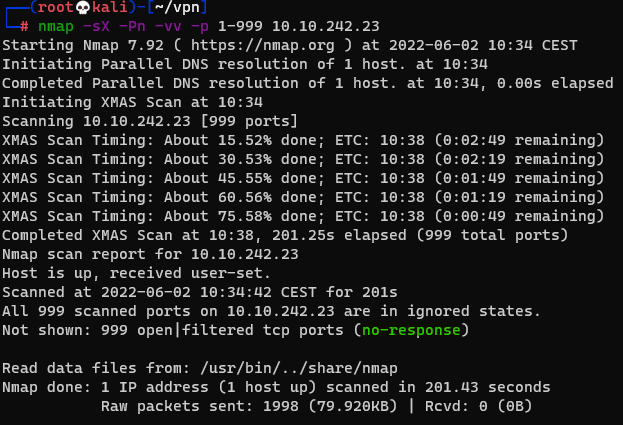

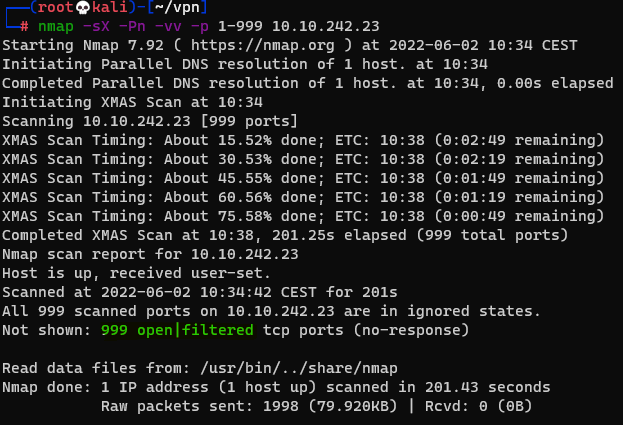

Question : Perform an Xmas scan on the first 999 ports of the target – how many ports are shown to be open or filtered ?

Answer : 999


Question : There is a reason given for this – what is it ?

Answer : No Response

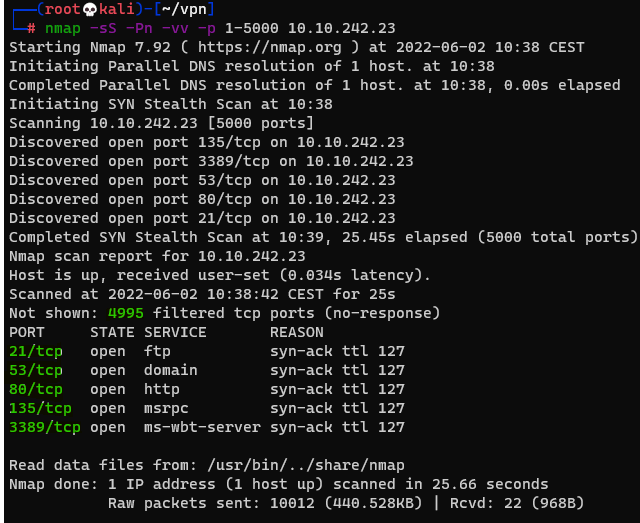

Question : Perform a TCP SYN scan on the first 5000 ports of the target – how many ports are shown to be open ?

Answer : 5

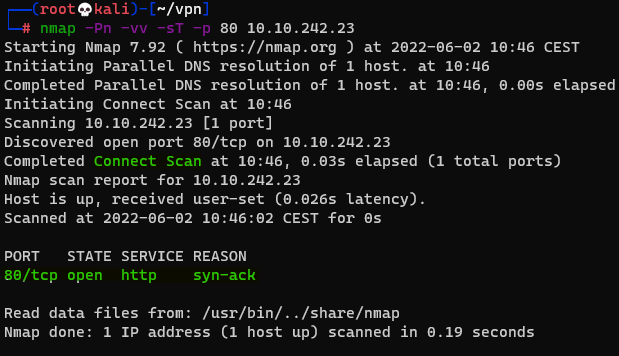

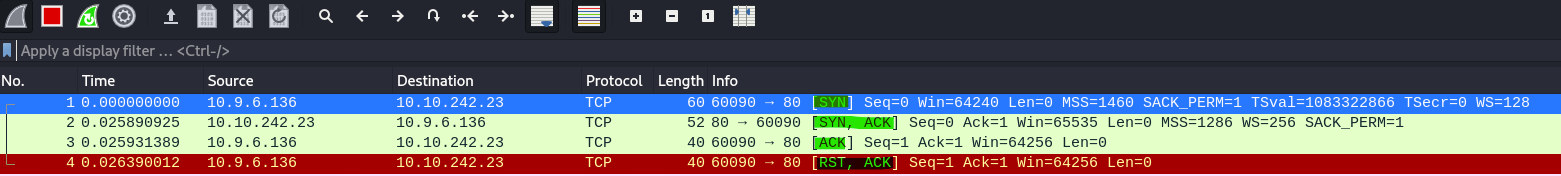

Question : Open Wireshark (see Cryillic’s Wireshark Room for instructions) and perform a TCP Connect scan against port 80 on the target, monitoring the results. Make sure you understand what’s going on.

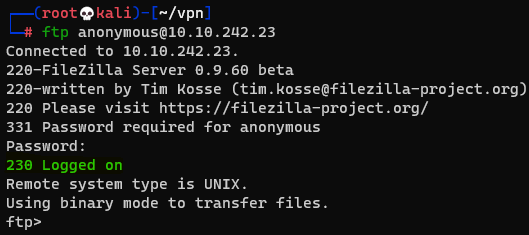

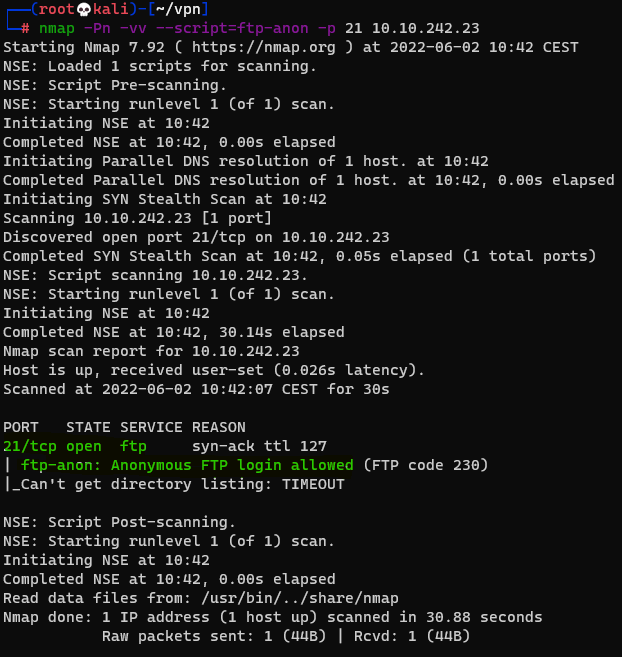

Question : Deploy the ftp-anon script against the box. Can Nmap login successfully to the FTP server on port 21 ? (Y/N)

Answer : Y
